Description

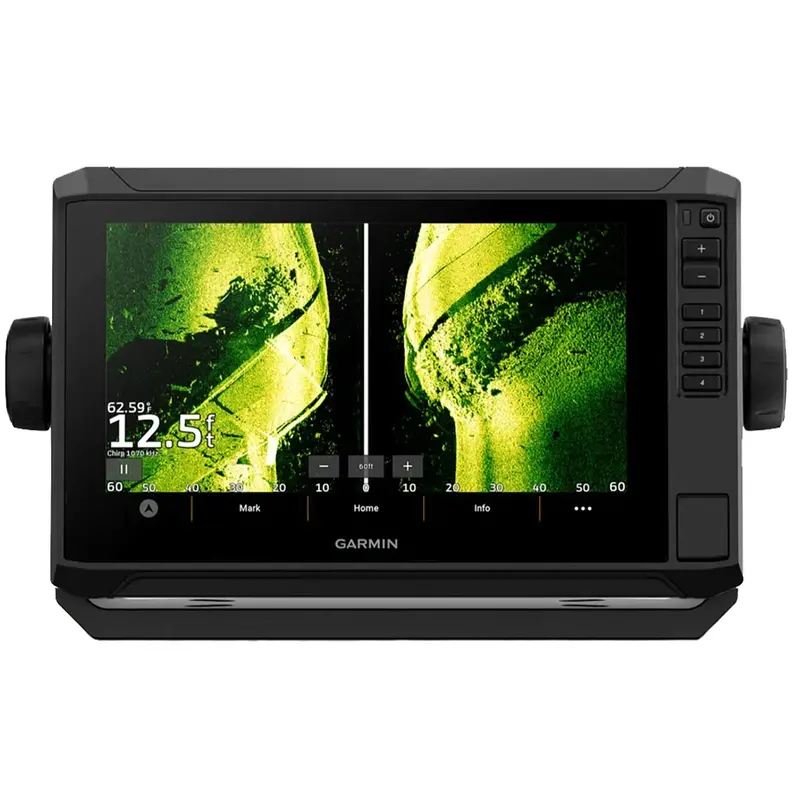

93sv without Transducer; Includes Garmin Navionics+ U.S. Inland Mapping
Physical & Performance
| Display Size | 7.8″ x 4.5″, 9.0″ (19.8 x 11.5 cm, 22.9 cm) |
| Power Input | 9 to 18 Vdc |
| Display resolution | 1024 x 600 pixels |
| GPS | Yes |
| Dimension | 10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8.0 cm) |
| Receiver |
10 Hz |
| Waterproof |
IPX7 |
| Weight |
2.9 lbs (1.3 kg) |
| Mounting Options | Bail or flush |
| Display Type | WSVGA, TN |
Maps & Navigation
| Garmin Navionics+ (Coastal) | yes (see Additional) |
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards |
1 microSD™ card; 32 GB maximum size |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
Features
| Waypoints |
5,000 |
| Sailing Features | Yes |
| NMEA 0183 Compatible | No |
| Has built-in receiver | Yes |
| USB ports | No |
| TOPO | Yes |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| DSC | Yes |
| Touchscreen | Yes |
| Additional |
|
| LakeVü g3 Ultra | No |
| NMEA 2000 Compatible | Yes |
| ActiveCaptain® compatible | yes |
| Typical current draw at 12 Vdc | 1.72 A |
| NMEA 2000® ports | yes |
| Tide tables | yes (see Additional) |
| GLONASS | Yes |
| Track points | 50,000 |
| Panoptix™ sonar | Yes |
| Garmin Marine Network Ports |
1 |
| LakeVü g3 | No |
| Supports WAAS | Yes |
| GSD Black Box Sonar Support | No |
| Maximum current draw at 12 Vdc | 3.5 A |
| Smart Mode Compatible | No |
| Built-in Auto Guidance | No |
| Maximum power usage at 10 Vdc | 20.7W |
| BlueChart g3 | No |
| Standard Mapping | Yes |
| LakeVu (inland) | No |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Displays sonar | Yes |
| ANT+ (Connectivity) | Yes |
| GCV Black Box Sonar Support | No |
| BNC external GPS antenna port | No |
| Spoken audio alerts | No |
| BlueChart g3 Vision | No |
| Garmin Wi-Fi network (local connection) | Yes |
| Input | Touchscreen with Keyed Assist |
| BeiDou | Yes |
| Garmin Quickdraw Contours | Yes |
| BLUETOOTH® pairing | Yes |
| AIS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Raster chart support | No |
| OneHelm support | No |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| Tracks | 50 saved tracks |
| Wireless Remote Compatible | No |
| Supports Fusion-Link™ compatible radios | Yes |
| Galileo | Yes |
| LiveScope | Yes |
| Power output | 500 W |
| 12-pin transducer ports | 1 |
| BlueChart (coastal) | No |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| GRID (Garmin Remote Input Device) compatible | No |
