Description
ProductDescription
-

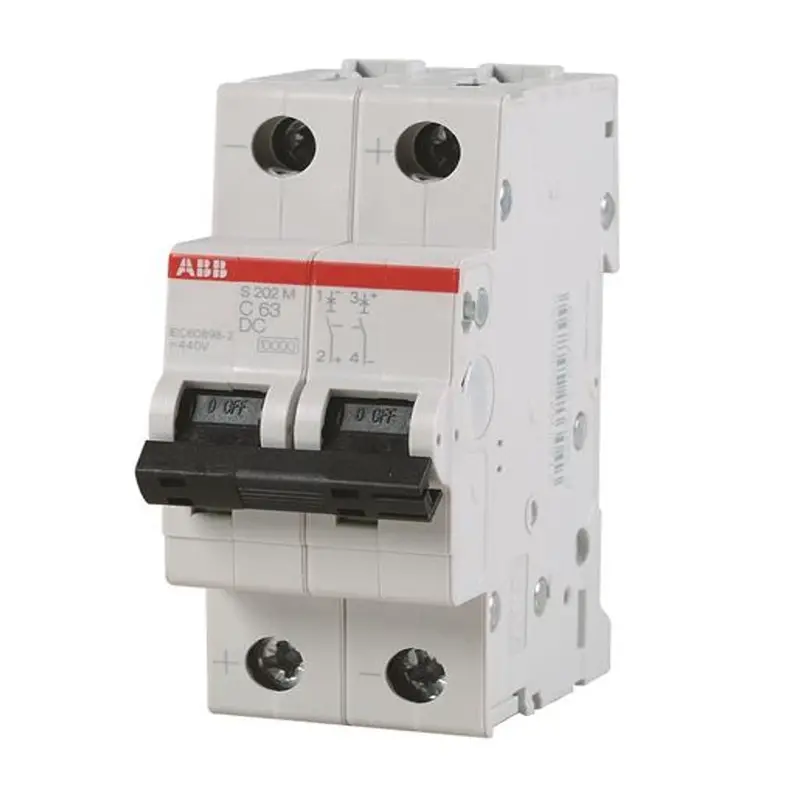

S200 M DC MCB in System pro M compact range impresses with its performance range, approvals and high inbuilt short circuit breaking capacity in DC applications
-
S200 M DC MCBs can be used in 2-pole version at 440V DC
-
The S200M DC range can be fitted with auxiliary and signal contact, remote control mechanism, shunt trip and under voltage release
-
Standards : IEC 60947-2
-
Approvals : VDE
-
Number of Poles : 2
-
Rated Curent : 1.6A – 63A
-
Tripping Characteristics Curve : C
-
Overvoltage category : III
-
Pollution degree : 2
-
Rated operational Voltage : 440 V DC
-
Maximum Power frequency recovery Voltage, Umax : 500V DC
-
Min Operating Voltage : 12 V DC
-
Rated Ultimate short-circuit breaking Capacity, Icu : 10 kA
-
Rated Service short-circuit breaking Capacity, Ics : 10 kA
-
Rated impluse withstand voltage Uimp (1.2/50μs) : 4 kV (test voltage 6.2 kV at sea level; 5 kV at 2,000 m)
-
Dielectric test voltage : 2 kV (1 min)
-
Reference temperature for tripping characteristics : 55 oC
-
Ambient temperature : -25…..+55C
-
Storage temperature : -40…..+70C
-
Product Net Width : 0.035 m
-
Product Net Height : 0.044 m
-
Product Net Depth / Length : 0.088 m
-
Product Net Weight : 0.250 kg
ProductSpecification
|
Rated current |
Type |
Product id |
|
1.6 A |
S202M-C1,6DC |
2CDS272064R0974 |
|
2 A |
S202M-C2DC |
2CDS272064R0024 |
|
3 A |
S202M-C3DC |
2CDS272064R0034 |
|
4 A |
S202M-C4DC |
2CDS272064R0044 |
|
6 A |
S202M-C6DC |
2CDS272064R0064 |
|
10 A |
S202M-C10DC |
2CDS272064R0104 |
|
16 A |
S202M-C16DC |
2CDS272064R0164 |
|
20 A |
S202M-C20DC |
2CDS272064R0204 |
|
25 A |
S202M-C25DC |
2CDS272064R0254 |
|
32 A |
S202M-C32DC |
2CDS272064R0324 |
|
40 A |
S202M-C40DC |
2CDS272064R0404 |
|
50 A |
S202M-C50DC |
2CDS272064R0504 |
|
63 A |
S202M-C63DC |
2CDS272064R0634 |
